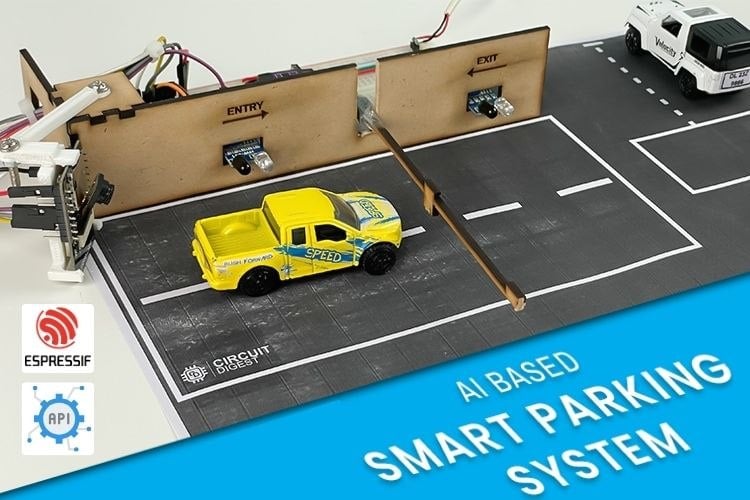

Système de stationnement intelligent basé sur l’IA utilisant ESP32-cam

Code de projet complet

Copier de code

/*
 * Smart Parking System using ESP32-CAM
 *
 * Features:
 * - WiFi connectivity for communication with a remote server.
 * - Secure HTTPS communication with the server using WiFiClientSecure.
 * - Camera functionality to capture images for license plate recognition.
 * - Integration with an NTP server for accurate timekeeping in Indian Standard Time (IST).
 * - Real-time web server interface for monitoring parking system status.
 * - Web page displays real-time information including current time, parking status, and captured images.
 * - Image capture triggered by a POST request from the web interface.
 * - Image upload to a remote server with automatic handling of responses.
 * - Servo motor control to open and close the parking barrier based on vehicle entry/exit.
 * - Detection of vehicle entry and exit using GPIO sensors.
 * - Dynamic update of available parking spaces based on vehicle count.
 * - Logging of valid number plates with timestamps for parking history.
 *
 * Working:
 * 1. Connects to a specified WiFi network.
 * 2. Initializes and configures the camera.
 * 3. Sets up and starts a web server to handle client requests.
 * 4. Establishes an NTP client to get the current time.
 * 5. Continuously updates the web server with real-time status and parking information.
 * 6. Handles image capture and upload when a POST request is received from the web interface.
 * 7. Updates parking space availability and history based on the recognition results.
 * 8. Controls the parking barrier using a servo motor, based on vehicle detection by sensors.
 * 9. Provides a web interface that refreshes periodically to display updated information.
 *
 * Note:
 * - Replace placeholders for WiFi credentials, server details, and API keys with actual values.
 * - Ensure proper handling of HTTPS certificates and security measures for production use.
 */
// Libraries for WiFi, Secure Client, and Camera functionalities
#include
#include
#include
#include
#include "soc/soc.h"
#include "soc/rtc_cntl_reg.h"
#include "esp_camera.h"
#include
#include
#include
// WiFi credentials and server information
const char* ssid = "xxx";             // Replace xxx with your WiFi SSID
const char* password = "xxx";          // Replace xxx with your WiFi Password
String serverName = "www.raspberryme.cloud";  // Replace with your server domain
String serverPath = "/readnumberplate";         // API endpoint path "/readqrcode" or "/readnumberplate"
const int serverPort = 443;                     // HTTPS port
String apiKey = "xxx";                 // Replace xxx with your API key
String imageViewLink = "https://www.raspberryme.cloud/static/" + apiKey + ".jpeg";
#define flashLight 4  // GPIO pin for the flashlight
int count = 0;        // Counter for image uploads
WiFiClientSecure client;  // Secure client for HTTPS communication
// Camera GPIO pins - adjust based on your ESP32-CAM board
#define PWDN_GPIO_NUM 32
#define RESET_GPIO_NUM -1
#define XCLK_GPIO_NUM 0
#define SIOD_GPIO_NUM 26
#define SIOC_GPIO_NUM 27
#define Y9_GPIO_NUM 35
#define Y8_GPIO_NUM 34
#define Y7_GPIO_NUM 39
#define Y6_GPIO_NUM 36
#define Y5_GPIO_NUM 21
#define Y4_GPIO_NUM 19
#define Y3_GPIO_NUM 18
#define Y2_GPIO_NUM 5
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM 23
#define PCLK_GPIO_NUM 22
// Network Time Protocol (NTP) setup
const char* ntpServer = "pool.ntp.org";  // NTP server
const long utcOffsetInSeconds = 19800;   // IST offset (UTC + 5:30)
int servoPin = 14;                      // GPIO pin for the servo motor
int inSensor = 13;                     // GPIO pin for the entry sensor
int outSensor = 15;                    // GPIO pin for the exit sensor
Servo myservo;                         // Servo object
int pos = 0;                           // Variable to hold servo position
// Initialize the NTPClient
WiFiUDP ntpUDP;
NTPClient timeClient(ntpUDP, ntpServer, utcOffsetInSeconds);
String currentTime = "";
// Web server on port 80
WebServer server(80);
// Variables to hold recognized data, current status, and history
String recognizedPlate = "";          // Variable to store the recognized plate number
String imageLink = "";                // Variable to store the image link
String currentStatus = "Idle";        // Variable to store the current status of the system
int availableSpaces = 4;             // Total parking spaces available
int vehicalCount = 0;                // Number of vehicles currently parked
int barrierDelay = 3000;             // Delay for barrier operations
int siteRefreshTime = 1;             // Web page refresh time in seconds
// History of valid number plates and their entry times
struct PlateEntry {
  String plateNumber;  // Plate number of the vehicle
  String time;        // Entry time of the vehicle
};
std::vector plateHistory;  // Vector to store the history of valid plates
// Function to extract a JSON string value by key
String extractJsonStringValue(const String& jsonString, const String& key) {
  int keyIndex = jsonString.indexOf(key);
  if (keyIndex == -1) {
    return "";
  }
  int startIndex = jsonString.indexOf(':', keyIndex) + 2;
  int endIndex = jsonString.indexOf('"', startIndex);
  if (startIndex == -1 || endIndex == -1) {
    return "";
  }
  return jsonString.substring(startIndex, endIndex);
}
// Function to handle the root web page
void handleRoot() {
  String html = "";
  html += "";
  html += "";
  html += "Smart Parking System";
  html += "";
  html += "";  // Refresh every x second
  html += "";
  html += "";
  html += "";
  html += "";
  html += "
Time: " + currentTime + "
";
  html += "
Status: " + currentStatus + "
";
  html += "
Last Recognized Plate: " + recognizedPlate + "
";
  html += "
Last Captured Image: View Image
";
  // html += "";
  html += "
Spaces available: " + String(availableSpaces - vehicalCount) + "
";
  html += "
Parking Database
";
  if (plateHistory.empty()) {
    html += "
No valid number plates recognized yet.
";
  } else {
    html += "";
    for (const auto& entry : plateHistory) {
      html += "";
    }
    html += "
Plate Number
Time
" + entry.plateNumber + "
" + entry.time + "
";
  }
  html += "";
  html += "
