Copier de code

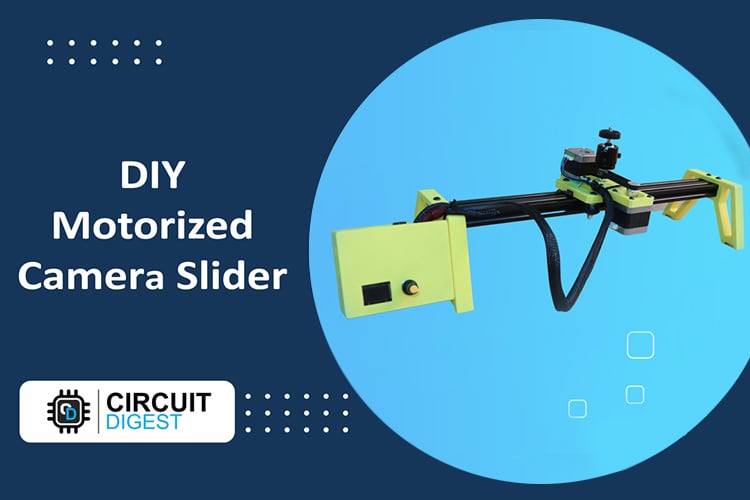

// Sketch for Diy Camera Slider // 10/11/2022 by Jobit Joseph for Circuit Digest // Project homepage: https://raspberryme.com/ /////////////////////////////////////////////////////////////////////////////////////// //Terms of use /////////////////////////////////////////////////////////////////////////////////////// //THE SOFTWARE IS PROVIDED "AS IS", WITHOUT WARRANTY OF ANY KIND, EXPRESS OR //IMPLIED, INCLUDING BUT NOT LIMITED TO THE WARRANTIES OF MERCHANTABILITY, //FITNESS FOR A PARTICULAR PURPOSE AND NONINFRINGEMENT. IN NO EVENT SHALL THE //AUTHORS OR COPYRIGHT HOLDERS BE LIABLE FOR ANY CLAIM, DAMAGES OR OTHER //LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, //OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN //THE SOFTWARE. /////////////////////////////////////////////////////////////////////////////////////// #include #include #include #include #include #include "bitmap.h" #define SCREEN_WIDTH 128 // OLED display width, in pixels #define SCREEN_HEIGHT 64 // OLED display height, in pixels #define I2Cspeed 1000000 #define limitSwitch 10 #define PinSW 3 #define PinCLK 2 #define PinDT 4 #define OLED_RESET -1 #define SCREEN_ADDRESS 0x3C Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET); AccelStepper stepper2(1, 8, 7); // (Type:driver, STEP, DIR) AccelStepper stepper1(1, 6, 5); MultiStepper StepperControl; long gotoposition[2]; int selection; volatile long XInPoint = 0; volatile long YInPoint = 0; volatile long XOutPoint = 0; volatile long YOutPoint = 0; volatile long totaldistance = 0; int flag = 0; int temp = 0; int i, j; unsigned long switch0 = 0; unsigned long rotary0 = 0; float setspeed = 200; float motorspeed; float timeinsec; float timeinmins; volatile boolean TurnDetected; volatile boolean rotationdirection; const int stepsPerRevolution =200; const int maxspeed = 6000; void oledDisplayCenter(const char* text, int x, int y) { int16_t x1; int16_t y1; uint16_t width; uint16_t height; display.getTextBounds(text, x, y, &x1, &y1, &width, &height); display.setCursor((SCREEN_WIDTH - width) / 2, y); display.print(text); // text to display } void Switch() { if (flag == 7 && selection == 0 && millis() - switch0 > 500) { flag = 10; } else if (millis() - switch0 > 500) { flag = flag + 1; selection = 1; } switch0 = millis(); } void Rotary() { delay(75); if (digitalRead(PinCLK)) rotationdirection = digitalRead(PinDT); else rotationdirection = !digitalRead(PinDT); TurnDetected = true; delay(75); } void setup() { Serial.begin(9600); stepper1.setMaxSpeed(maxspeed); stepper1.setSpeed(stepsPerRevolution); stepper2.setMaxSpeed(maxspeed); stepper2.setSpeed(stepsPerRevolution); pinMode(limitSwitch, INPUT_PULLUP); pinMode(PinSW, INPUT_PULLUP); pinMode(PinCLK, INPUT_PULLUP); pinMode(PinDT, INPUT_PULLUP); display.begin(SSD1306_SWITCHCAPVCC, 0x3C); display.clearDisplay(); // Create instances for MultiStepper - Adding the 2 steppers to the StepperControl instance for multi control StepperControl.addStepper(stepper1); StepperControl.addStepper(stepper2); attachInterrupt(digitalPinToInterrupt(PinSW), Switch, RISING); // SW connected to D2 attachInterrupt(digitalPinToInterrupt(PinCLK), Rotary, RISING); // CLK Connected to D3 // display Boot logo for (int i = 124; i > 0; i = i - 4) { display.drawBitmap(i, 0, CamSlider, 128, 64, 1); display.display(); display.clearDisplay(); } delay(1000); display.clearDisplay(); Home(); // Move the slider to the initial position - homing } void Home() { stepper1.setMaxSpeed(maxspeed); stepper1.setSpeed(stepsPerRevolution); stepper2.setMaxSpeed(maxspeed); stepper2.setSpeed(stepsPerRevolution); if (digitalRead(limitSwitch) == 1) { for (int i = 92; i > 3; i = i - 4) { display.drawBitmap(17, 5, Homing, 92, 27, 1); display.drawBitmap(0, 51, slider, 128, 13, 1); display.drawBitmap(i, 40, camera, 20, 17, 1); display.display(); display.clearDisplay(); } } while (digitalRead(limitSwitch) == 1) { stepper1.setSpeed(-maxspeed); stepper1.runSpeed(); } delay(20); stepper1.setCurrentPosition(0); stepper1.moveTo(100); while (stepper1.distanceToGo() != 0) { stepper1.setSpeed(maxspeed/2); stepper1.runSpeed(); } stepper1.setCurrentPosition(0); display.clearDisplay(); } void SetSpeed() { display.clearDisplay(); while (flag == 6) { if (TurnDetected) { TurnDetected = false; // do NOT repeat IF loop until new rotation detected if (rotationdirection) { setspeed = setspeed + 20; } if (!rotationdirection) { setspeed = setspeed - 20; if (setspeed < 0) { setspeed = 0; } } display.clearDisplay(); display.setTextSize(2); display.setTextColor(WHITE); display.setCursor(30, 0); display.print("Speed"); motorspeed = setspeed / 80; display.setCursor(5, 16); display.print(motorspeed); display.print(" mm/s"); totaldistance = XOutPoint - XInPoint; if (totaldistance < 0) { totaldistance = totaldistance * (-1); } else { } timeinsec = (totaldistance / setspeed); timeinmins = timeinsec / 60; display.setCursor(35, 32); display.print("Time"); display.setCursor(8, 48); if (timeinmins > 1) { display.print(timeinmins); display.print(" min"); } else { display.print(timeinsec); display.print(" sec"); } display.display(); } display.clearDisplay(); display.setTextSize(2); display.setTextColor(WHITE); display.setCursor(30, 0); display.print("Speed"); motorspeed = setspeed / 80; display.setCursor(5, 16); display.print(motorspeed); display.print(" mm/s"); totaldistance = XOutPoint - XInPoint; if (totaldistance < 0) { totaldistance = totaldistance * (-1); } else { } timeinsec = (totaldistance / setspeed); timeinmins = timeinsec / 60; display.setCursor(35, 32); display.print("Time"); display.setCursor(8, 48); if (timeinmins > 1) { display.print(timeinmins); display.print(" min"); } else { display.print(timeinsec); display.print(" sec"); } display.display(); } } void select() { if (TurnDetected) { TurnDetected = false; if (rotationdirection && selection == 0) { selection = 1; Serial.print("selection: "); Serial.println(selection); } if (!rotationdirection && selection == 1) { selection = 0; Serial.print("selection: "); Serial.println(selection); } } } void stepperposition(int n) { stepper1.setMaxSpeed(maxspeed); stepper1.setSpeed(stepsPerRevolution); stepper2.setMaxSpeed(maxspeed); stepper2.setSpeed(stepsPerRevolution); if (TurnDetected) { TurnDetected = false; // do NOT repeat IF loop until new rotation detected if (n == 1) { if (!rotationdirection) { if (stepper1.currentPosition() - 200 > 0) { stepper1.move(-200); while (stepper1.distanceToGo() != 0) { stepper1.setSpeed(-maxspeed/2); stepper1.runSpeed(); } } else { while (stepper1.currentPosition() != 0) { stepper1.setSpeed(-maxspeed/2); stepper1.runSpeed(); } } } if (rotationdirection) { if (stepper1.currentPosition() + 200 < 149000) { stepper1.move(200); while (stepper1.distanceToGo() != 0) { stepper1.setSpeed(maxspeed/2); stepper1.runSpeed(); } } else { while (stepper1.currentPosition() != 149000) { stepper1.setSpeed(maxspeed/2); stepper1.runSpeed(); } } } } if (n == 2) { if (rotationdirection) { stepper2.move(-10); while (stepper2.distanceToGo() != 0) { stepper2.setSpeed(-maxspeed); stepper2.runSpeed(); } } if (!rotationdirection) { stepper2.move(10); while (stepper2.distanceToGo() != 0) { stepper2.setSpeed(maxspeed); stepper2.runSpeed(); } } } } } void loop() { //Begin Setup if (flag == 0) { display.clearDisplay(); display.drawBitmap(30, 12, BeginSetup, 58, 37, 1); display.display(); setspeed = 200; } //SetXin if (flag == 1) { display.clearDisplay(); display.setTextSize(2); display.setTextColor(WHITE); display.drawBitmap(0, 51, slider, 128, 13, 1); display.drawBitmap(4, 40, camera, 20, 17, 1); oledDisplayCenter("SLIDE IN", 0, 5); display.display(); while (flag == 1) { stepperposition(1); } XInPoint = stepper1.currentPosition(); } //SetYin if (flag == 2) { display.clearDisplay(); display.setTextSize(2); display.setTextColor(WHITE); display.drawBitmap(0, 51, slider, 128, 13, 1); display.drawBitmap(4, 40, camera, 20, 17, 1); oledDisplayCenter("PAN IN", 0, 5); display.display(); while (flag == 2) { stepperposition(2); } stepper2.setCurrentPosition(0); YInPoint = stepper2.currentPosition(); } //SetXout if (flag == 3) { display.clearDisplay(); display.setTextSize(2); display.setTextColor(WHITE); display.drawBitmap(0, 51, slider, 128, 13, 1); display.drawBitmap(92, 40, camera, 20, 17, 1); oledDisplayCenter("SLIDE OUT", 0, 5); display.display(); while (flag == 3) { stepperposition(1); Serial.println(stepper1.currentPosition()); } XOutPoint = stepper1.currentPosition(); } //SetYout if (flag == 4) { display.clearDisplay(); display.setTextSize(2); display.setTextColor(WHITE); display.drawBitmap(0, 51, slider, 128, 13, 1); display.drawBitmap(92, 40, camera, 20, 17, 1); oledDisplayCenter("PAN OUT", 0, 5); display.display(); while (flag == 4) { stepperposition(2); } YOutPoint = stepper2.currentPosition(); display.clearDisplay(); // Go to IN position gotoposition[0] = XInPoint; gotoposition[1] = YInPoint; display.clearDisplay(); display.setCursor(8, 28); display.println(" Preview "); display.display(); stepper1.setMaxSpeed(maxspeed/2); StepperControl.moveTo(gotoposition); StepperControl.runSpeedToPosition(); } //Display Set Speed if (flag == 5) { display.clearDisplay(); display.setCursor(8, 28); oledDisplayCenter("Set Speed", 0, 20); display.display(); } //Change Speed if (flag == 6) { display.clearDisplay(); SetSpeed(); } //DisplayStart if (flag == 7) { display.clearDisplay(); display.setCursor(30, 27); oledDisplayCenter("Start", 0, 5); display.drawBitmap(20, 35, XMARK, 24, 24, 1); display.drawBitmap(84, 35, TMARK, 24, 24, 1); if(selection == 0) { display.drawRoundRect(18, 33, 28 , 28, 2, WHITE); } else { display.drawRoundRect(82, 33, 28 , 28, 2, WHITE); } display.display(); select(); } //Start if (flag == 8) { display.clearDisplay(); display.setCursor(20, 27); oledDisplayCenter("Running", 0, 20); display.display(); Serial.println(XInPoint); Serial.println(XOutPoint); Serial.println(YInPoint); Serial.println(YOutPoint); gotoposition[0] = XOutPoint; gotoposition[1] = YOutPoint; stepper1.setMaxSpeed(setspeed); StepperControl.moveTo(gotoposition); StepperControl.runSpeedToPosition(); flag = flag + 1; } //Slide Finish if (flag == 9) { display.clearDisplay(); display.setCursor(24, 26); oledDisplayCenter("Finish", 0, 20); display.display(); } //Return to start if (flag == 10) { display.clearDisplay(); Home(); flag = 0; } }
